Used for the drilling processing of H beam, box beam, channel steel, rails, angles of steel structure, bridge, three dimensional garage and petrol platform.

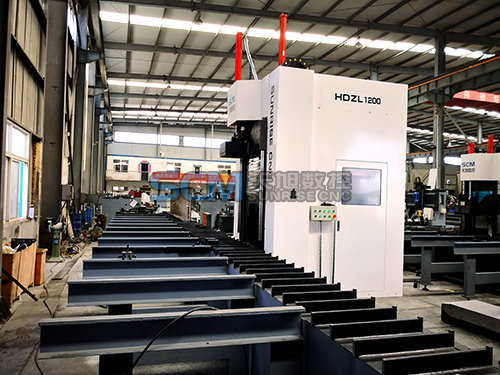

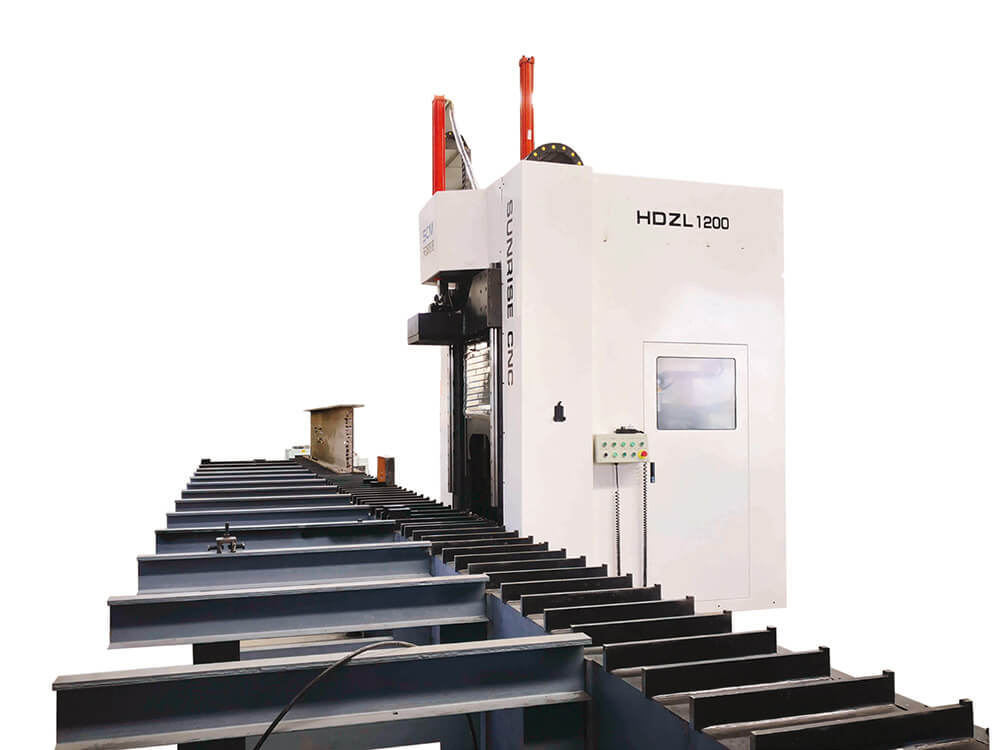

Product Feature of HDZL600/HDZL1200 Single Spindle High Speed CNC Beams Drilling Machine
1. CNC SIEMENS systems, LCD screen display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
2. Main machine, hydraulic pressure, electric components are famous products domestic and abroad.
3. Equipped with automatic cooling system, lubrication system.
4. Double linear guides' feeding, precision much higher and more stable.
Model |
HDZL600 |
HDZL1200 |
The Process Workpiece Size (mm) |
600x600 |
1200x600 |
Max. Length of Work Piece (m) |
14 |
14 |
Max. Drilling Thickness (mm) |
100 |
100 |
Taper Hole of Spindle |
BT40/BT50 |
BT40/BT50 |
Max. Drilling Diameter (mm) |
40(BT40)/50(BT50) |
40(BT40)/50(BT50) |
Motor Power of Spindle (kW) |
15(BT40)/22(BT50) |
15(BT40)/22(BT50) |
Drilling Speed (rpm) |
30-3000 |
30-3000 |
Feeding Mode of Spindle (mm/min) |
0-4000 |
0-4000 |
Max. Feeding Stroke (mm) |
300 |
300 |
Quantity of Axis |
3 |
3 |
Type of ATC (Automatic Tool Changer) |
Inline Style with 6 Tools (Optional) |
Inline Style with 6 Tools (Optional) |
Quantity of Tooling (pics) |
6 |
6 |
CNC System |
SIEMENS CNC |
SIEMENS CNC |
Weight (Kg) |
About 18000 |
About 25000 |
Overall size (mm) |
About 16000 x 4000 x 3600 |
About 15500 x 3500 x 4200 |
