Special CNC machine for punching and marking of steel plates in the field of steel tower industry. It is also used to punch and mark of steel plates of other industries.
1. Machine Host Including Punching, Marking Unit |

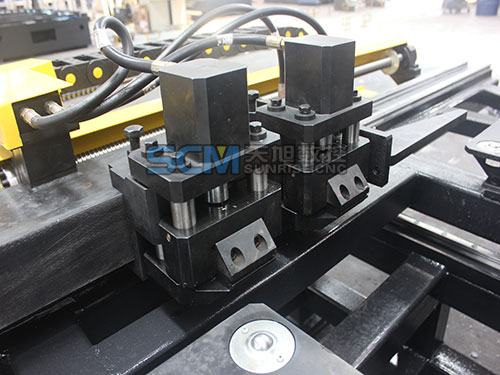

2. Work-Table with Hydraulic Clamps |
3. Hydraulic Unit |
4. Electrical Cabinet |
1. Main functions: Punching, Marking.
2. Mainly used for punching, marking connection plate of tower, bridge, steel structure industry.
Model |
TPPR103 |
TPPR104 |
Max size of work piece L×W(mm) |
1500×800 |
1500x1000 |
Max. punching diameter (mm) |
Φ26 |
|
Plate punching thickness (mm) |
5~25 (Q345) |
|
Punching force (kN) |
1200 |
|
Marking force (kN) |
1000 |
|
Min. distance between hole and plate edge (mm) |
25 |
|
Character size (mm) |
14×10×19 |
|
No. of character |
12 |
14 |
Die-stations |
3 |
|
Precision |
Accordance with GB2694 |
|
Programming mode |
Auto CAD drawing or lofting software |
|
Overall dimensions L×W×H (mm) |
3400×3200×1900 |
3500×3000×1900 |
Machine weight (kg) |
About 6500 |
About 6900 |
1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different workpiece, with zero baffle as datum mark, and workpiece supported by rolling-ball working table. Axis X & Y action should be controlled by servo motor and ball-screw driving, and double-axis CNC system controls the position of punching, so as to make the whole machining process automatically; operator may input the sizes of workpiece to computer for repeated calling program in the future.
2. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.
3. Important functional components adopt modular assembly, easy to repair it.
4. Carry out punching and marking on the one plate.
5. Easy programming, may input the diameter of holes, position and the quantity of workpiece to computer, and also may use the program generated by lofting software. It can ready TEKLA lofting software files, such as NC1 format.
6. With self-diagnosis failures function.
7. X, Y axis are driven by servo motor + ball screw + linear guide, the precision is better.
8. Worktable adopts stainless steel plate, more beautiful and practical.
