The machine is the special equipment used for angle steel drilling & marking mainly in the field of angle steel tower industry.
1. Transverse Conveyor |
2. Rotating Loading System with Rotating Motor |

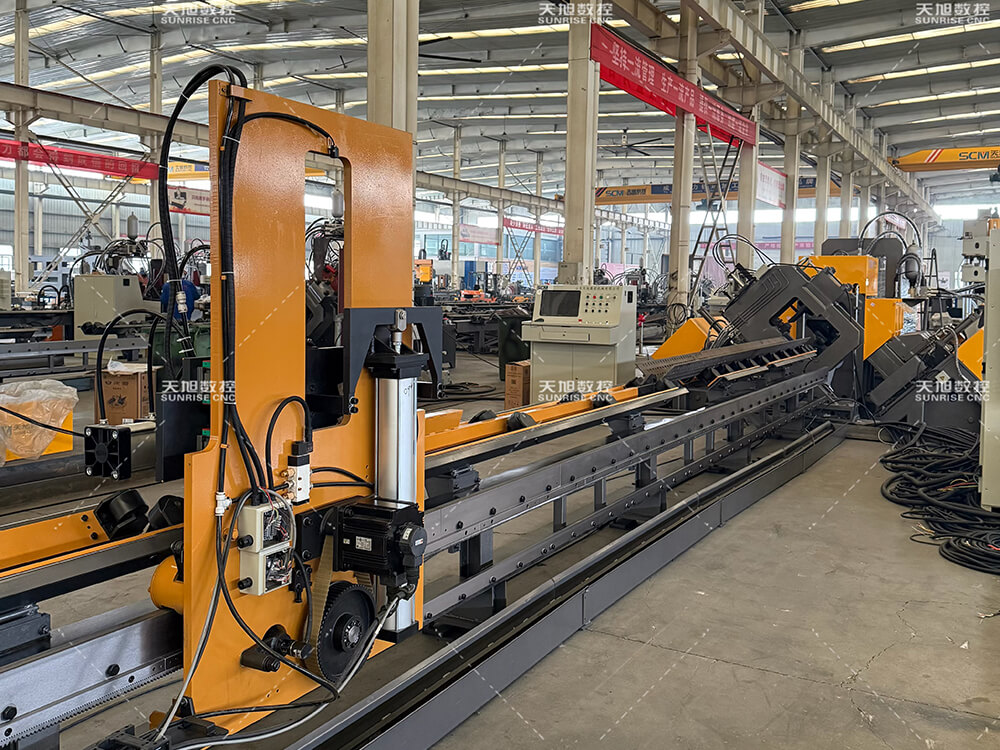

3. Infeed Conveyor and CNC Controlled Carriage |

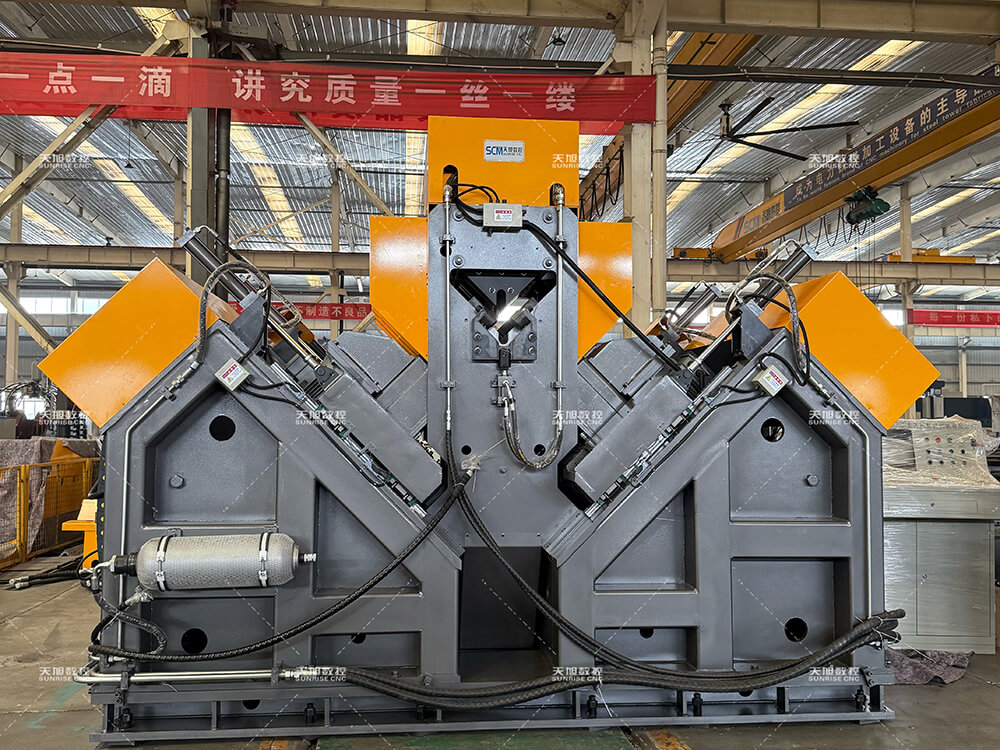

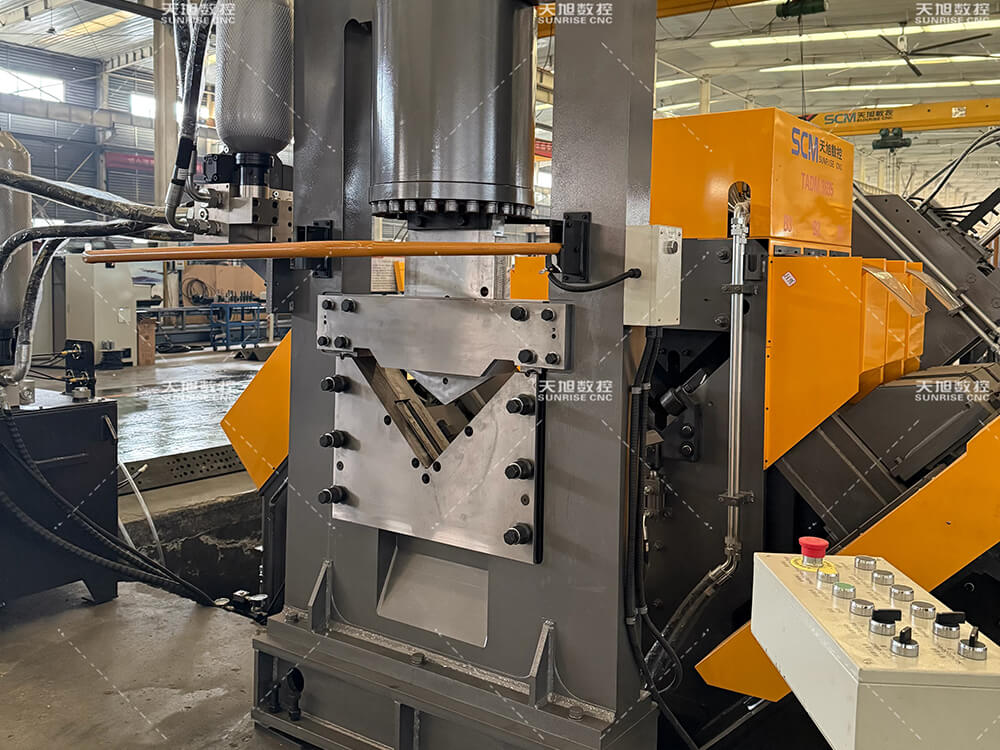

4. Machine Host Including Drilling, Marking & Shearing Unit (Optional Part, Max. Shearing Size 200×200×20mm) |
5. Unloading Conveyor |
6. Hydraulic Unit |
7. Electrical Cabinet |
1. Angle processing size: TBL2532 (140×140×10-250×250×32mm), TBL3535 (140×140×10-250×250×32mm).
2. High speed drilling: 6000r/min.
3. Functions: Drilling, Marking.
4. Quantity punches on each side: 3 (Can install three different kinds of drill bits).
5. NC carriage feeding, more faster and precision more higher.
6. Double accumulators(Which are located above the host and the hydraulic station), improve the speed of punching and production efficiency.
Model |
TADM2532 |
Angle size (mm) |
140×140×10~250×250×32 |
Max. length of blank (m) |
12 /14 (by users' request) |
Marking force (kN) |
1030 |
No. of character group |
1 |
No. of character |
15 |
Character size (mm) |
14×10×19 |
Range of stadia (mm) |
50~220 stepless |
No. of drill on each side |
3 |
Taper of drilling spindle |
BT40 |
Max. drilling diameter (mm) |
Φ26 |
Stroke of spindle (mm) |
140 |
Max. spindle rotation speed (r/min) |
6000 |
Max. feeding speed (m/min) |
40 |
Max. moving speed of slipway of drilling head (m/min) |
10 |
Max. feeding speed of drilling head (m/min) |
14 |
No. of CNC axes |
9 |
Overall dimensions (m) |
30×7.5×3 |
Total power (kW) |
109.7 |
Machine weight (kg) |
≈30000 |
1. High-efficiency processing equipment for tower manufacturing industry-Drilling & marking; CNC automatic production line for angles.
2. Mainly for drilling large and high tensile angles.
3. Precision spindle, high-speed drilling.

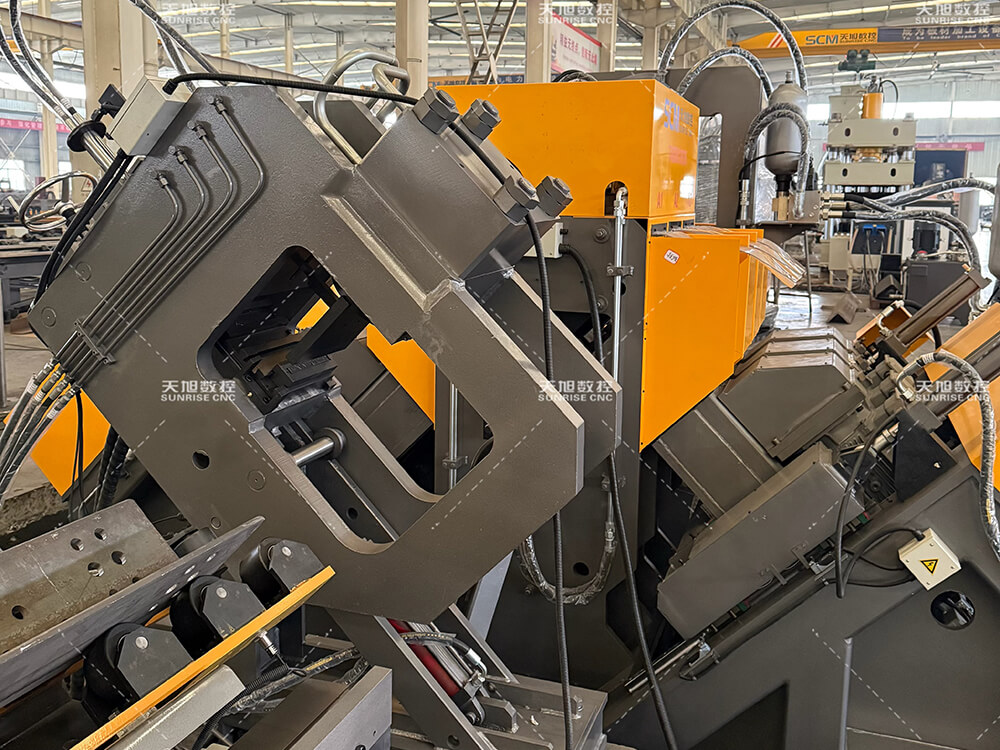

4. The drilling unit is equipped with six CNC drills. All the holes on the angle can be completed in one time.
5. Use high-speed carbide drills in cold.
6. The machining process is numerical control and operation is very convenient. It can fulfill automation, high-precision, multi-species and high quantity production.
7. The upper computer adopts English interface which is easy to operate. It can accept certain processing program which is made from special software. And also you can program manually.
8. Marking unit adopts closed frame with good rigidity. Marking stadia can be set at will.
9. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.
10. Key hydraulic, pneumatic and electric parts are all world famous brand.
